Waterfront

Seawall repair in Miami-Dade: methods, permits, and timelines

A seawall is a retaining structure that happens to have water on one side, and when it starts to fail the first thing lost is the yard behind it. What follows is how the failure runs, the repair options in order of cost, and the county permitting that sets the schedule.

Miami-Dade has an enormous quantity of engineered shoreline: canals cut through the county, bay frontage, and finger islands. Most of it is held in place by a concrete seawall, and most of those walls are old enough that maintenance is no longer optional. The good news is that seawall failure is slow, visible, and well understood. The bad news is that the permitting takes longer than the work.

How a seawall fails

Not by falling over. The usual sequence is that a crack or an open joint appears in the wall or in the cap. Water moving in and out with the tide then passes through that opening in both directions, and each cycle carries a little fine material out from behind the wall. Over months and years that produces a void, and the ground above the void eventually slumps into it. The homeowner sees a soft or dished patch in the lawn, sometimes a long way back from the wall, and quite reasonably thinks it is a sinkhole.

A depression near a Miami seawall is soil loss, not a sinkhole. Sealing the path and replacing the lost material are two separate jobs, and doing only the second one means doing it again next year.

It is not. Cover-collapse sinkholes are a west-central Florida phenomenon; the Florida Geological Survey's own favorability model puts Miami-Dade in its lowest class, and its subsidence incident database holds four Miami-Dade records against more than six hundred for Hillsborough County. A depression near a seawall in this county is soil loss, and it is an ordinary repair. The sinkhole guide lays out the data.

Once enough material has left, the cap loses its support and cracks, which is often the point at which the wall visibly declares itself. Where the wall has also begun to rotate outward at the top, the problem has moved from soil loss to stability, and the repair options change.

What to look at

Cracks in the cap, particularly ones running parallel to the wall rather than across it.
Open or displaced joints between panels, above or below the waterline.
Soft, dished, or subsiding ground behind the wall, including under a patio or a pool deck.
The wall leaning outward at the top, checked with a level rather than by eye.
Weep holes blocked or absent. Their job is to relieve water pressure behind the wall, and a blocked one loads the wall in exactly the direction it was not designed for.
Spalling and exposed reinforcement, especially in the splash zone.
Erosion or scour at the toe, where the wall meets the bed.

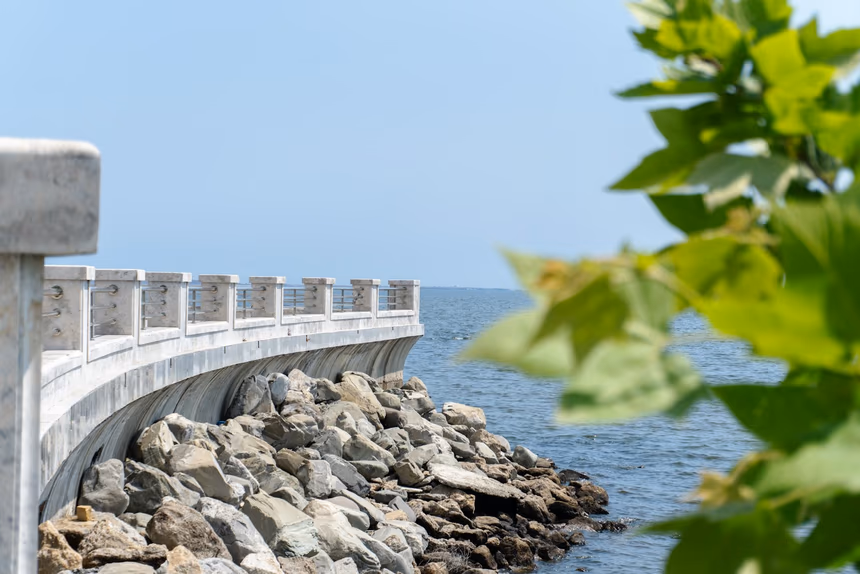

A curving concrete seawall with a capped top and railing, with a bank of large rip-rap boulders piled against its base where it meets the water — Rip-rap placed against the toe of a wall breaks up wave energy and slows scour at the base. It is a maintenance measure rather than a structural one, and it does nothing about soil leaving through a joint higher up.

Repair options, cheapest first

Joint sealing and chemical grouting, roughly $150 to $400 per linear foot. Injecting grout behind the wall to fill the void and seal the path the soil has been leaving through. The right answer for an otherwise sound wall with a soil-loss problem, and the most common seawall job in the county.
Cap repair or replacement, roughly $300 to $700 per linear foot. Where the cap has cracked or spalled. Usually done after, or with, the grouting that addresses why it lost support.
Tiebacks and deadmen, priced per anchor. Rods running back from the wall to anchors buried in the soil behind it, resisting the pressure that would otherwise rotate the wall. Typically spaced every six to ten feet. A retrofit that can extend the life of a leaning but otherwise sound wall considerably.
Panel replacement and full rebuild, roughly $900 to $2,200 per linear foot. Where the wall is past economic repair. Height, water depth, and access drive the range, and barge access instead of land access moves it substantially.
Rip-rap and toe protection. Rock placed at the base to slow scour. Cheap, useful, and not a substitute for anything above.

The permitting, which is the real schedule

Work in, on, or over tidal waters in Miami-Dade requires a Class I permit from the county's Division of Environmental Resources Management under sections 24-48.2 and 24-48.3 of the Code of Miami-Dade County. The Class I application explicitly lists seawalls, new and replacement seawalls, seawall caps, batter piles, king piles, footer and toe walls, rip-rap, dredging, and filling. A building permit runs separately through your municipality or the county.

Filling tidal waters goes further and additionally requires a public hearing before the Board of County Commissioners. Depending on scope, state and federal permitting can also apply. None of this is quick, and it is the reason a seawall project is planned a season ahead while a land-side repair is scheduled in weeks.

Repair or replace

The honest test is what the panels look like below the water line and whether the wall is still plumb. A plumb wall with sound panels and a cracked cap is a repair. A wall that has tipped outward, has spalled panels with exposed corroded steel, and has lost soil behind it more than once is heading for replacement even if a repair buys a few years.

A dive inspection is what settles it. It costs a fraction of the difference between the two answers, and committing to either without one is a decision made blind. Scope detail is on the seawall and shoreline page.

Get a free quote

Call (786) 841-1091 or send the quote form. Describing what you are seeing costs nothing, and so does the written quote that follows.

Questions on this

How long does seawall permitting take?

Longer than the construction, and that is the planning point. A Class I environmental permit from the county runs alongside the building permit, and depending on scope, state and federal agencies can be involved as well. Maintenance repairs above the water line are quicker. Replacement is a months-long process, so starting the paperwork in the spring rather than during hurricane season is the practical advice.

My neighbor replaced their wall and mine is now the low point.

A common situation on a canal where walls were built to different eras and different criteria. It is worth an engineer looking at the junction between the two, because a step in wall height changes how water and soil behave at the boundary. Whether it obliges anyone to do anything is a legal question rather than an engineering one.

How long should a seawall last?

Long, if the drainage details work and the concrete cover was adequate for the exposure, and much less if either failed. The killers are weep holes that clog so hydrostatic pressure builds behind the wall, joints that open and let soil out, and reinforcement too close to the face in an environment the state classifies as extremely aggressive.

Can I just fill the hole in my lawn?

You can, and it will come back, because the path the soil left through is still open. Filling the depression treats the symptom. Sealing the joint or crack treats the cause. Both need doing, and doing them in the wrong order means doing the second one twice.

Sources

Miami-Dade Class I permit application, listing the shoreline activities covered.
Florida Geological Survey subsidence incident reports, for the sinkhole comparison.
FDOT Structures Design Guidelines, on extremely aggressive marine exposure.
